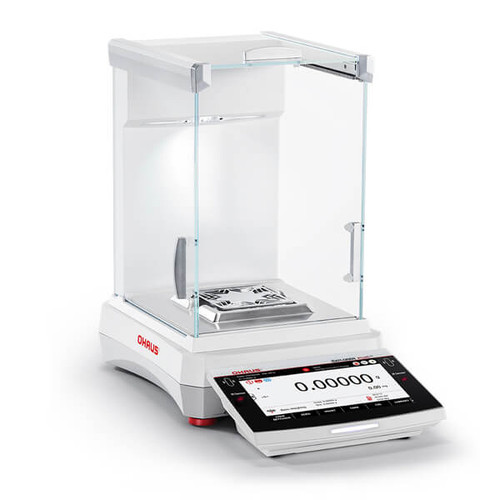

Ohaus Explorer Plus™ Semi-Micro Balances

The Ohaus Explorer Plus™ Semi-Micro Balances are extremely accurate and durable, and are ideal for laboratory work and research that requires accuracy to the hundred-thousandth. The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability, and this flagship balance is crafted to meet the most demanding requirements of modern scientific research. The models have capacities of up to 220 g, and resolutions up to 0.01 mg. The precision-machined, solid metal weighing cells coupled with Ohaus’ signature AutoCal™ internal calibration system ensure accurate, reproducible measurements. The ultra-fast stabilization time (0.1 mg: ≤2 second, 0.01 mg: ≤5 second) and audible stability alert increases laboratory efficiency. All models feature automated doors.

Each unit features seamless setup with motorized leveling, anti-pinch auto doors, touchless sensors, ionizers, and draft shield lights. Also featured are a 7-inch glass touchscreen, chemical protection, and 2 modifiable status lights. Compliance is also ensured with a 4-level user system, password protection, and 100k internal system log. The time synchronization NTP function confirms data traceability to meet Pharmaceutical regulations.

Typical application modes include basic weighing, parts counting, check counting, percent weighing, check weighing, dynamic weighing, totalization, formulation, differential, density determination, peak hold, pipette adjustment, SQC, fill weight variation, and flow rate control. Weight displays feature 18 weighing units, including Gram, Milligrams, Carat, Newton, Ounce, Troy Ounce, Grain, Pennyweight, Momme, msg, tl H, tl S, tl T, tcl, tola, baht, and 2 custom set options.

The die-cast metal base, 3.1" x 3.1" (80 mm x 80 mm) stainless steel pan and thick metal housing withstand daily wear and tear, and are powered with an AC adapter (included). Communication via USB Host Type A (x2), USB Device Type B, USB Device Type C, Ethernet (RJ45), RS232, and an optional Wi-Fi/Bluetooth Dongle (accessory sold separately) Also featured are straightforward integration to Laboratory Information Management Systems (LIMS) and hassle-free data transfer with a driverless HID, for easy data input.

Balance Dimensions: 14.6” h x 9.0” d x 16.1” w (372 x 229 x 408 mm)

Balance Weight: 17.2 lb (7.8 kg)

See H-EXPLORER-EXR-SM for the base models.

Literature available:

• Ohaus Explorer Plus™ Semi-Micro Balances summary sheet

Accessories: A variety of accessories and replacement parts are available. These include a SF40A bluetooth impact printer (item # H-30944360), SF40A impact printer (item # H-30064203), fingerprint scanner, bluetooth and wi-fi dongle, static ionizer (item # H-30130302), weighing kit, solid density kit (item # H-80253384), glass sinker density kit (item # H-83034024), pipette evaporation trap (item # H-30252145), RS422 terminal extension cable (item # H-30078078), SF40A paper rolls (item # H-30064203), and SF40A ink ribbon cassette (item # H-30064203).
