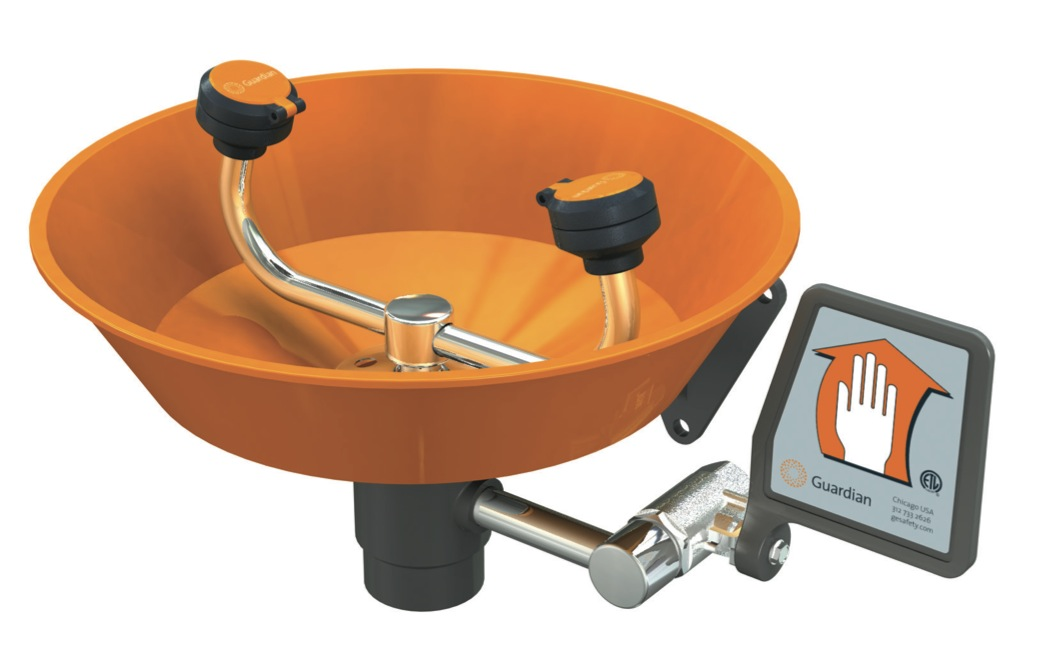

Guardian G1814P Eyewash, Wall Mounted, Plastic Bowl

Item #: G1814P
Quantity:
$196.50

Availability: 1-2 business days

Product Description

The Guardian Equipment G1814P features a rugged ABS plastic bowl in your choice of orange, green, or yellow. Similar models are the G1814 which is identical except it comes with a stainless steel bowl and the G1750 which features two FS-Plus™ spray heads for complete rinsing of the eyes and face. For an all-stainlesss wall-mount model see the G1891.

Features Options

Application: Eyewash for wall mounting. Two GS-Plus™ spray-type spray heads deliver a flood of water for rinsing eyes.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Bowl: 11-3/4" diameter orange ABS plastic.

Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.

Supply: 1/2" NPT female inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

DC Stainless steel dust cover for each spray head.

GRN Green ABS plastic bowl.

HS Auxiliary hand-held drench hose for rinsing eyes, face or body.

SC Self-closing ball valve. Note: Eyewashes with self-closing valves do not comply with ANSI Z358.1 - 2014.

T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection.

TP 1 1/2" OD chrome plated brass tailpiece.

YEL Yellow ABS plastic bowl.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G1814P specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head, 150-014E-2 cast aluminum waste receptor.

All Guardian items are manufactured in the USA. This item ships in a box approximately 14" x 14" x 12" (35.6 x 35.6 x 30.5 cm) weighing approximately 7 pounds (3.2 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
