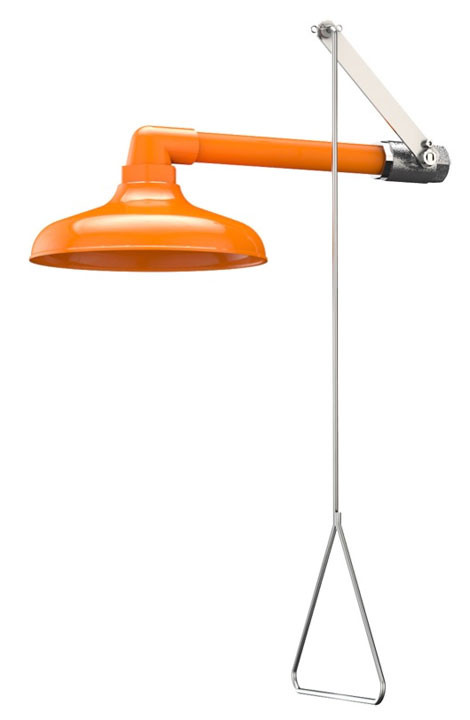

  • A photograph of an orange G1643 horizontally-mounted emergency shower.
  • A photograph of a green G1643GRN horizontally-mounted emergency shower.
  • A photograph of a yellow G1643YELN horizontally-mounted emergency shower.

Guardian G1643 Emergency Shower, Horizontally Mounted, Plastic Shower Head

Item #: G1643
Quantity:
$247.25

Normal Availability: 1-2 business days

Product Description

The Guardian Equipment G1643 shower is horizontally mounted from the wall. The unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. Options include orange, yellow, and green ABS as well as polished chrome-plated brass and stainless steel shower heads. For an all-stainless steel version of this shower see model G1691. The G1641 is similar to the G1643 but includes an 8-foot drench hose. The GBF1643 is the wheelchair-accessible version of this item; one should consider universal design on all safety equipment even if there is not a present need.

Features Options

Application: Emergency shower for horizontal mounting.

Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.

Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.

Pipe and Fittings: 1" IPS galvanized steel nipple with orange ABS plastic elbow.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor.

AP250-015 Modesty curtain for horizontal shower installation.

AP280-100 Electric Light and Alarm Horn. Flashing light and horn serve to summon assistance when shower is activated.

GRN Safety green ABS plastic shower head.

PCC All-polished chrome plated brass construction.

SSH Stainless steel shower head.

YEL Safety yellow ABS plastic shower head.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G1643 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts330-12-08RSE-OR orange plastic street elbow and AP450-032ORG orange ABS plastic shower head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 31" x 11" x 5" (79 x 28 x 13 cm) weighing approximately 7 pounds (3.2 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
