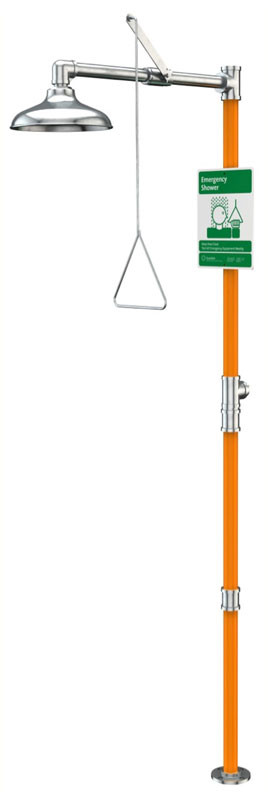

  • A photograph of a Guardian G1696 Emergency Shower, Free Standing, Stainless Steel Construction with orange pipe covers.

Guardian G1696 Emergency Shower, Free Standing, Stainless Steel Construction

Item #: G1696
Quantity:
$1,776.00

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment 1696 shower is a freestanding shower ideal for mounting locations that are not near a wall. The unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. If you don't need the corrosion resistance of stainless steel, the nearly identical G1662 is an economical alternative. For a comparable safety station which includes an eyewash as well as a shower, see the G1991 model.

Features Options

Application: Free standing emergency shower. Ideal for use in areas where highly corrosive materials are handled, as well as in laboratory and clean room applications.

Shower Head: 10" diameter stainless steel with 20 GPM flow control.

Valve: 1” IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.

Pipe and Fittings: Schedule 40 stainless steel. Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.

Supply: 1-1/4" NPT female top or side inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

AP250-015 Modesty Curtain Modesty curtain for horizontal shower installation.

AP275-200 Electric Light and Alarm Horn. Flashing light and horn serve to summon assistance when shower is activated.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  G1696 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: Under normal conditions of use, replacement parts are not routinely necessary.

All Guardian items are manufactured in the USA. This item ships in a box approximately 31" x 11" x 5" (79 x 28 x 13 cm) weighing approximately 33 pounds (15 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
