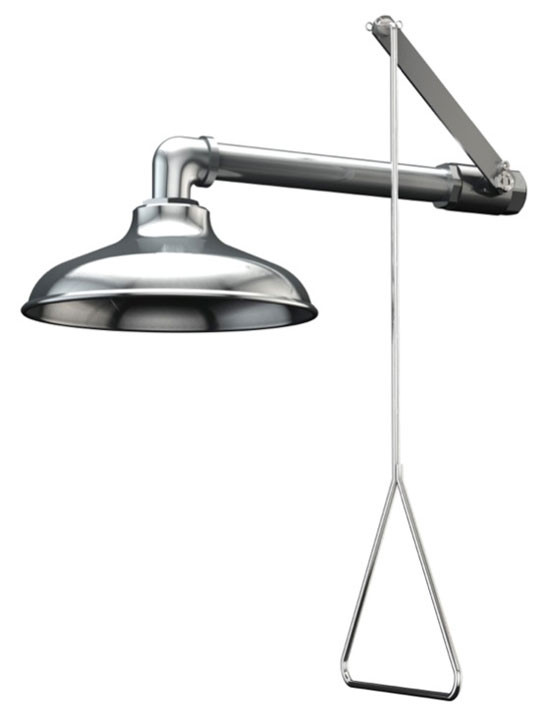

  • A photograph of a Guardian G1691 Emergency Shower, Horizontally Mounted, All-Stainless Steel.

Guardian G1691 Emergency Shower, Horizontally Mounted, All-Stainless Steel

Item #: G1691

Normal Availability: 1-2 business days

Product Description

The Guardian Equipment G1691 shower is horizontally mounted from the wall. The unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. If you don't need all-stainless construction, the G1643 is similar in most respects. The G1696 is another all-stainless option if you need a free-standing shower where wall mounting is not feasible.

Features Options

Application: All-stainless steel emergency shower for horizontal mounting. Ideal for use in areas where highly corrosive materials are handled, as well as in laboratory and clean room applications.

Shower Head: 10" diameter stainless steel with 20 GPM flow control.

Valve: 1" IPS stainless steel stay-open ball valve.Valve has stainless steel ball and Teflon® seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.

Pipe and Fittings: 1" IPS stainless steel.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor.

AP250-015 Modesty curtain for horizontal shower installation.

AP280-100 Electric Light and Alarm Horn. Flashing light and horn serve to summon assistance when shower is activated.

PSH Orange ABS plastic shower head.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.

Documentation available:  G1691 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: Under normal conditions of use, replacement parts are not normally necessary.

All Guardian items are manufactured in the USA. This item ships in a box approximately 31" x 11" x 5" (79 x 28 x 13 cm) weighing approximately 9 pounds (4.1 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
