Guardian G1753 Eye/Face Wash, Wall Mounted, Stainless Steel Bowl and Skirt

Item #: G1753
Quantity:
$660.00

Availability: 3-5 business days

Product Description

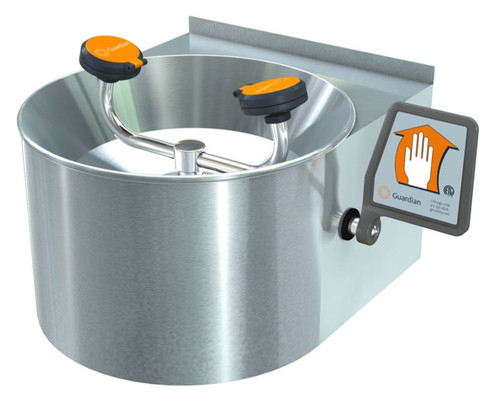

The Guardian Equipment G1753 features a stainless steel bowl and skirt which conceals the plumbing beneath for a crisp clean appearance. The G1750 is similar but lacks the skirt. The G1721 is identical except it has four GS-Plus™ spray heads to rinse the eyes and face. The G1813 is also similar but has two GS-Plus™ spray heads which limits its capability to eye washing only.   Additional wall-mounted models, including all-stainless steel, PVC and ADA-compliant  permutations, are available.

Features Options

Application: Eye/face wash for wall mounting. Unit has stainless steel bowl and wrap-around skirt to conceal valve, drain and piping. Ideal for laboratories and other areas where clean, uncluttered appearance is desired.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Bowl: 11-1/2" stainless steel with wraparound skirt.

Mounting: Bowl and skirt unit has welded stainless steel bracket for wall mounting.

Supply: 1/2" NPT female inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

DC Stainless steel dust cover for each spray head.

HS Auxiliary hand-held drench hose for rinsing eyes, face or body.

SC Self-closing ball valve. Note: Eye/face washes with self-closing valves do not comply with ANSI Z358.1 - 2014.

T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection.

TP 1 1/2" OD chrome plated brass tailpiece.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1753 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 16 x 16 x 16" (41 x 41 x 41 cm) weighing approximately 14 pounds (6.35 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
