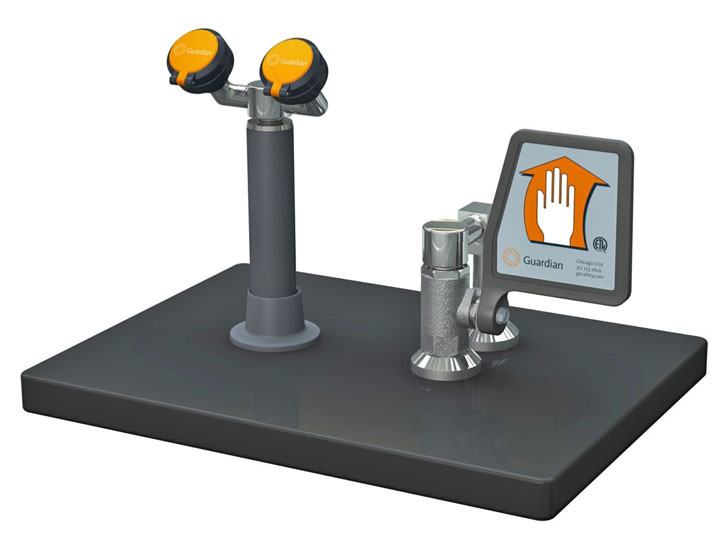

Guardian G5028 Eyewash/Drench Hose Unit, Deck Mounted, Ball Valve with Flag Handle

Item #: G5028
Quantity:
$391.00

Availability: 3-5 business days

Product Description

The Guardian Equipment G5028 is a combination deck-mounted drench hose and eyewash that is activated by pushing a deck-mounted flag handle that stays open until manually closed. The G5043 is similar but is activated by a separate push-down valve mechanism and has only a single spray head which means it does not count as an eyewash under ANSI Z358.1.

Features Options

Application: Dual purpose eyewash/drench hose unit for deck mounting. Unit meets the provisions of ANSI Z358.1 -2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.

Spray Head Assembly: Two GS-PlusTM spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2” IPS brass stay-open ball valve. Valve is U.S.-made with chrome plated brass ball and TFE seals.

Hose: 8’ reinforced PVC hose. 300 PSI maximum working pressure. Note: Hose must be inspected at least monthly for indications of wear, abrasion, loss of flexibility or loosening of end connections.

Supply: 1/2” NPT male inlet.

Mounting: Eyewash assembly has deck flange for countertop mounting. Flange has handle locator guide to position spray heads facing forward at all times.

Sign: ANSI-compliant identification sign, item # 250-006G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

BP In-line dual check backflow preventer installed on inlet of hose. Note: Check with code authority for compliance with local plumbing code.

DC Stainless steel dust cover for each spray head.

FSH 8 ft. flexible stainless steel hose in place of PVC hose.

HG Undercounter hose guide bracket to prevent hose from tangling or binding.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  Specification sheets for the G5028 and G5028VB w/ measured drawings, installation, opertion and maintenance guide, and written specifications for the G5028VB and G5028VB (Word format).

Common replacement parts470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. Approximate shipping weight is 6 pounds (2.7 kg) and the approximate shipping dimensions are 13" x 9" x 9" (33 x 23 x 23 cm).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
