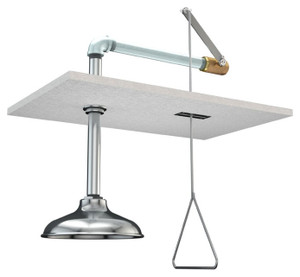

  • A photograph of a Guardian GBF1658 Barrier-Free Emergency Shower installed in a ceiling panel (ceiling panel not included).

Guardian GBF1658 Barrier-Free Emergency Shower, Semi-Concealed, Stainless Steel Shower Head and Pipe

Item #: GBF1658
Quantity:
$688.50

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment GBF1658 shower has a semi-recessed design for installation in ceilings 8 to 10 feet above the finished floor and an extended length pull rod for wheelchair users. The unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. If you have very high ceilings, consider a regular horizontal mount model like the GBF1643.  The G1658 is the standard version of this model, however we encourage all users to consider univeral design in their safety equipment selections even if there is not a current specific need.

Features Options

Application: Barrier-free emergency shower for semi-concealed mounting in a finished ceiling. Unit is designed for installation in ceilings 8-10 feet above finished floor.

ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach and distance from obstructions).

Shower Head: 10" diameter stainless steel with 20 GPM flow control. Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height above finished floor.

Valve: 1" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm, 85" stainless steel pull rod and stainless steel ceiling guide plate.

Pipe and Fittings: Exposed pipe and ceiling escutcheon are brushed stainless steel.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor.

PCC All-polished chrome plated brass construction.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  GBF1658 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: Under normal conditions of use none are generally required.

All Guardian items are manufactured in the USA. This item ships in a box approximately 85" x 11" x 5" (216 x 28 x 13 cm) weighing approximately 15 pounds (6.8 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
