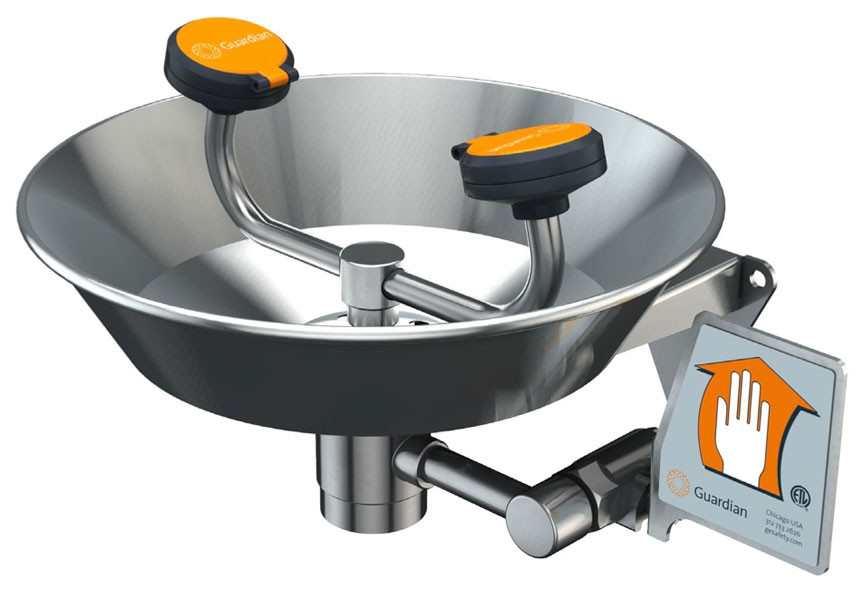

  • A photograph of a Guardian G1781 Eye/Face Wash, Wall Mounted, All-Stainless Steel

Guardian G1781 Eye/Face Wash, Wall Mounted, All-Stainless Steel

Item #: G1781
Quantity:
$1,124.00

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G1781 is a completely stainless steel eyewash for superior corrosion resistance. The G1750 is similar but only the bowl is stainless steel . The G1791 is also all-stainless steel and features four GS-Plus™ spray heads to cover the eyes and face.  The G1891 is also all-stainless but has only two GS-Plus™ spray heads which cover only the eyes.  The G1784 is an all-stainless version of this unit but in a pedestal mount. Additional corrosion-resistant and ADA-compliant models are also available.

Features Options

Application: Eye/face wash for wall mounting. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and clean room applications. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon® seals.

Bowl: 11-1/8" diameter stainless steel.

Mounting: Heavy duty stainless steel wall bracket.

Supply: 1/2" NPT female inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated.

T Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection.

TP 1 1/2" OD chrome plated brass tailpiece.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1781 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 14" x 14" x 12" (35.6 x 35.6 x 30.5 cm) weighing approximately 8 pounds (3.6 kg).



Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
