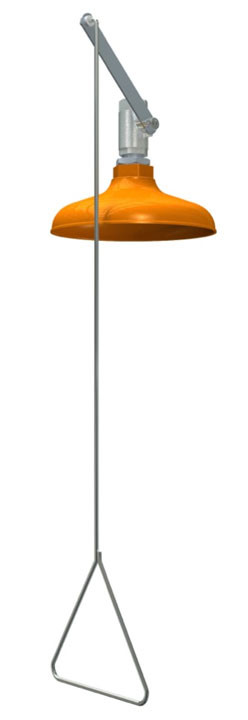

  • A photograph of an orange Guardian GBF1635 Barrier-Free Emergency Shower.
  • A photograph of a green Guardian GBF1635GRN Barrier-Free Emergency Shower.
  • A photograph of a yellow Guardian GBF1635YEL Barrier-Free Emergency Shower.

Guardian GBF1635 Barrier-Free Emergency Showers, Vertically Mounted

Item #: GBF1635

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment GBF1635 shower is vertically mounted from the ceiling and features an extended length activation rod to accommodate wheelchair users. The unit is activated by pulling on the solid pull rod and the shower valve stays open until the pull rod is manually pushed up. Options include orange, yellow, green, and stainless steel shower heads. The G1635 is the standard version of this product, but we encourage folks to consider universal design when selecting safety equipment.

Features Options

Application:  Barrier-free emergency shower for vertical mounting. Unit should be installed so that shower head is at least 82" above floor and 32" from wall or nearest obstruction.

ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach and distance from obstructions).

Shower Head: 10" diameter with 20 GPM flow control. Shower head is orange ABS plastic; additional colors and material options are available.

Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 59-1/2” stainless steel pull rod.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor.

GRN Safety green ABS plastic shower head.

SSH Stainless steel shower head.

YEL Safety yellow ABS plastic shower head.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.

Documentation available:  GBF1635 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts:

All Guardian items are manufactured in the USA. This item ships in a box approximately 60" x 11" x 5" (152 x 28 x 13 cm) weighing approximately 7 pounds (3.2 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
