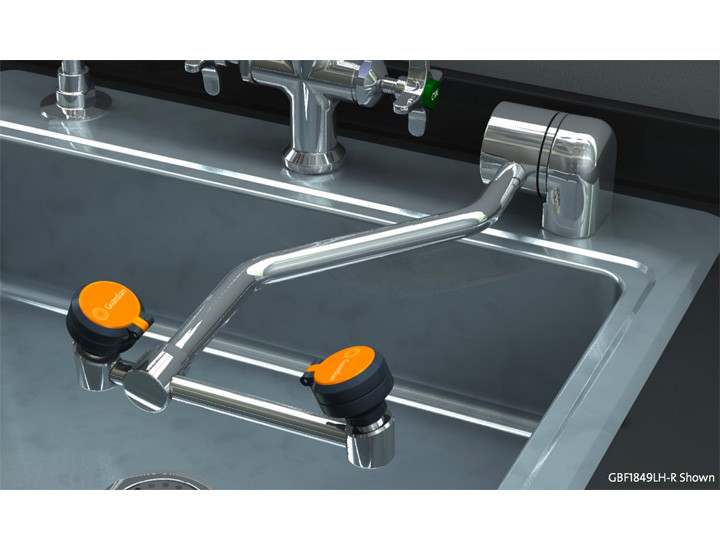

  • A photograph of a guardian gbf1849 barrier-free eyewash, deck mounted, autoflow™ 90º swing-down.
  • A diagram showing the mounting configurations of the Guardian GBF1849. Top row (left to right): GBF1849L, GBF1849, GBF1849R. Bottom row: (left to right): GBF1849LH-L, GBF1849LH, GBF1849LH-R.

Guardian GBF1849 Barrier-Free Eyewash, Deck Mounted, AutoFlow™ 90º Swing-Down

Item #: GBF1849

Normal Availability: 1-5 business days depending on configuration

Product Description

The Guardian Equipment Barrier-Free GBF1849 eyewash mounts to the deck at the rear of your existing sink and swivels out of the way when not needed. These units are available in right and left-handed configurations, each of which has three offset options so as not to interfere with your faucet or operations. The sink is not included.  Similar models are the standard G1849, the  G1805 which mounts to the deck next your sink and the G1848 which mounts on the wall behind the sink. All-stainless steel models are also available.

Features Options

Application: The barrier-free, AutoFlow™ eyewash is mounted on a counter. The eyewash outlet assembly is lowered and extended to permit access by wheelchair user. ADA compliance is dependent on 27” knee clearance under counter and 34” maximum counter height. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2” IPS plug-type valve with O-ring seals. Swinging head assembly down from storage to operational position opens orifice and activates water flow. Unit remains in operation until spray head assembly is returned to storage position.

Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.

Mounting: Unit mounts on countertop behind sink. Furnished with mounting hardware for securing unit to counter.

Construction: Polished chrome plated brass.

Supply: 1/2” NPT male inlet.

Waste: Polished chrome plated brass.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  GBF1849 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed) and AP470-001 replacement GS-Plus spray heads.

All Guardian items are manufactured in the USA. Weight: approximately 11 pounds (5 kg).

Other Details

Manufactured in: USA
