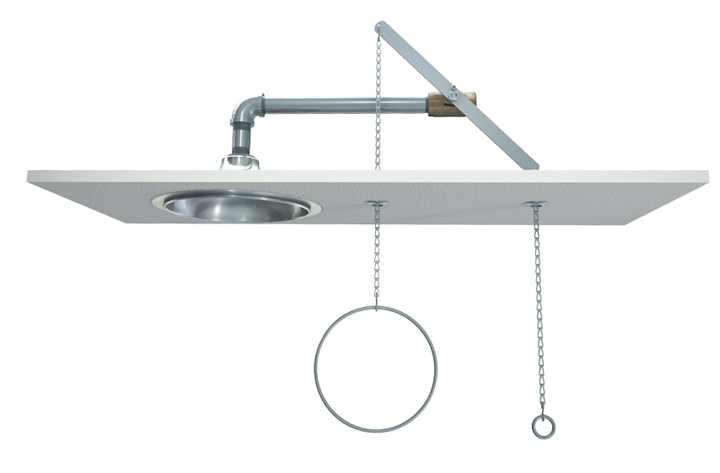

The Guardian Equipment G1627 shower is designed for recessed mounting in a suspended or finished ceiling as shown here (panel not included). It has a corrosion-resistant stainless steel shower head and face plate. This unit features two rings suspecnded on chains. The large ring is for activation and the smaller one for deactivation. The G1629 is similar but has a solid pull rod which accomplishes both functions.
Application: Emergency shower for recess mounting in a finished ceiling or soffit. Shower is activated by dual on/off pull chains.
Shower Head: 10" diameter with flange for flush mounting in ceiling. Shower head is stainless steel with stainless steel face plate.
Valve: 1" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm, dual on/off pull chains with rings and ceiling ferrules.
Pipe and Fittings: 1" IPS galvanized steel.
Supply: 1" NPT female inlet.
Sign: ANSI-compliant identification sign, item # 250-009G.Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor. This unit should therefore not be installed in ceilings over 8 feet. For higher ceiling heights, we recommend the G1658 shower.
AP280-230 Electric Light and Alarm Horn Flashing light/alarm horn unit is recess mounted in finished wall. Light is illuminated and horn sounds when shower is activated. Furnished complete with flow switch and mounting hardware.
FC20 Regulates shower flow rate to 20 GPM.
Common replacement parts: Under routine conditions of use, there are no parts that commonly wear out.
All Guardian items are manufactured in the USA. Shipping weight approximately 13 pounds (5.9 kg).
2-year limited manufacturer warranty.
