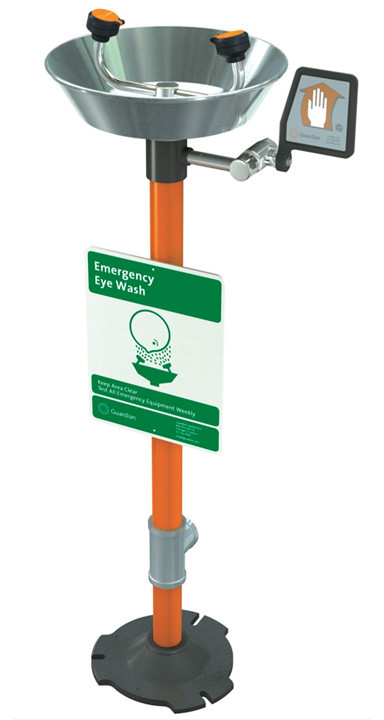

Guardian G1825 Eyewashes, Pedestal Mounted, Stainless Steel Bowl

Item #: G1825
Quantity:
$337.00

Availability: 1-2 business days

Product Description

The Guardian Equipment G1825 features a stainless steel bowl and comes with a number of popular options such as a stainless-steel bowl cover, auxilliary drench hose, and hand/foot controls. Similar models are the G1825P which is identical except it comes with a plastic bowl and the G1894 which features all-stainless steel construction. For a similar wall-mount model see the G1814. Addtional configurations and ADA-compliant models are also available.

Features Options

Application: Free standing, pedestal mounted eyewash. Two GS-Plus™ spray-type spray heads deliver a flood of water for rinsing eyes.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Bowl: 11-1/8" diameter stainless steel.

Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.

Supply: 1/2" NPT female inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.

BC Stainless steel bowl cover (G1825 only). Cover protects unit against contaminants. Cover is automatically raised when unit is activated.

DC Stainless steel dust cover for each spray head.

HFC Hand and foot control. Eyewash is activated by flag handle or foot treadle.

HS Auxiliary hand-held drench hose for rinsing eyes, face or body.

SC Self-closing ball valve. Note: Eyewashes with self-closing valves do not comply with ANSI Z358.1 - 2014.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.


Documentation available:  Specification sheets w/ measured drawings: G1825G1825BC, and G1825HFC. Written specifications (Word format): G1825G1825BC, and G1825HFC.  A parts list, is also available.

Common replacement parts: 470-004R filters (inspect regularly and change as needed), AP470-001 replacement GS-Plus spray head, 150-066-2 cast aluminum waste receptor.

All Guardian items are manufactured in the USA.

The G1825 ships in a box approximately 16" x 23" x 13" (41 x 58 x 33 cm) weighing approximately 18 pounds (8.2 kg).

The G1825HFC ships in a box weighing approximately 20 lb (9.1 kg) measuring approximately 16" x 23" x 13" (41 x 58 x 33 cm).

The G1825BC ships in a box weighing approximately 22 lb (10 kg) measuring approximately 25" x 18" x 23" (64 x 46 x 58 cm).

Warranty Information

2-year manufacturer limited warranty.

Other Details

Manufactured in: USA
