Product Description

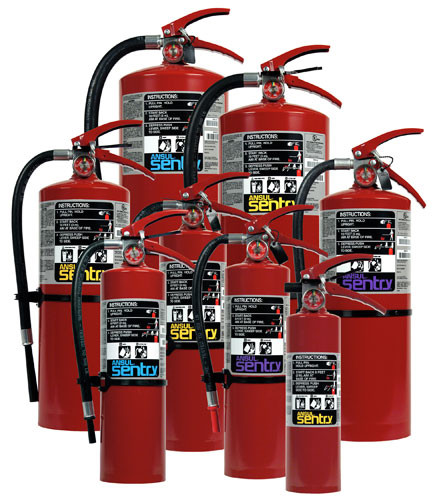

These Ansul Sentry Class ABC Sentry fire extinguishers are use to combat fires involving ordinary combustible materials such as wood, cloth, paper, rubber and many plastics (Class A) as well as fires involving flammable liquids, gases, and greases (Class B) and fires involving energized electrical equipment (Class C). Foray is a great choice for combination fires (Class A and B together) as well as Class A fires at temperatures that would freeze water; Foray is at least four to five time more effective as an equal weight of water on Class A fires.
- Ansul FORAY extinguishing agent. Refill: item # 09455.
- Seamless, welded steel shell hydrotested to 600 psi (41 bar).
- Tough, polyester-urethane powder paint.
- Extruded aluminum valve, plated steel valve stem, steel pick-up tube, plated steel ring pin, standard CO2 hanger hook.
- Large color-coded pressure gauge.
- Listed/Approved by UL, DOT, USCG (with proper bracket).
- Vehicle bracket option for the 2-1/2 and 5 lb models to keep the extinguisher secure in moving vehicles.
Note: There is a $250 minimum order on Ansul extinguishers (mix and match any Ansul extinguishers; other items in your order do not count towards this minimum order). Our e-commerce system does not have a capability to handle that, so be aware that while you can order say, just one 2.5 lb Ansul extinguisher, we can't sell you just one. We can, however, supply Amerex brand extinguishers with no minimum order.
Application Note 1: This extinguishing agent is incompatible with strong bases, magnesium, strong oxidizers such as calcium hypochlorite (pool chlorine) and isocyanuric acids; consult the Safety Data Sheet (SDS) for Foray for details.
Application Note 2: Paragraph 4.4.1 of the 2017 edition of NFPA 10 requires that all dry chemical stored pressure fire extinguishers manufactured prior to 1984 be replaced immediately. Paragraph 4.4 declares that all extinguishers, regardless of type, manufactured prior to 1955 are obsolete as they were tested to obsolete standards and rating systems.
Specifications:
| Agent Capacity (lb) | 2.5 | 5 | 10 | 20 |
| Ansul Model # | A02S, A02S VB* | AA05S-1, AA05S-1 VB* | AA10S | AA20-1 |
| Ansul part # | 438732/438735 | 442257/442258 | 436500 | 434747 |
| Applicator | Nozzle | Hose & Nozzle | ||
| UL & ULC Rating | 1-A:10-B:C | 3-A:40-B:C | 4-A:80-B:C | 10-A:120-B:C |
| Coast Guard Rating | Type B, C, Size I | Type A Size II Type Bc, C, Size I |
Type A Size II Type B, C, Size II |
Type A Size II Type B, C, Size III |
| Discharge time (seconds) | 9 | 14 | 21 | 28 |
| Maximum Effective Range | 11 ft (3.4 m) | 14 ft (4.3 m) | 20 ft (6.1 m) | 22 ft (6.7 m) |
| Operating Temperature Range | -65 to 120 °F (-54 to 49 °C) | -40 to 120 °F (-40 to 49 °C) | ||
| Charged Weight w/ Agent | 5 lb (2.27 kg) | 9.1 lb (4.12 kg) | 17 lb (7.73 kg) | 32.1 lb (14.6 kg) |
| Height | 13.75" (34.9 cm) | 16.75" (42.5 cm) | 20.5" (52 cm) | 22.5" (57.2 cm) |
| Width | 5.25" (13.3 cm) | 8.5" (21.6 cm) | 8.25" (21 cm) | 9.5" (24.1 cm) |
| Depth (Diameter) | 3-3/8" (8.6 cm) | 4-7/16" (11.3 cm) | 5-1/4" (13.5 cm) | 7-7/32" (18.3 cm) |
| Suppression Capability, Novice | 10 ft2 (0.93 m2) | 40 ft2 (3.7 m2) | 80 ft2 (7.4 m2) | 120 ft2 (11.1 m2) |
| Suppression Capability, Experienced | 25 ft2 (2.3 m2) | 100 ft2 (9.3 m2) | 200 ft2 (18.6 m2) | 300 ft2 (27.9 m2) |
| Ansul Bracket Part # | 24610 | 429146 | 435793 | 30937 |
| Number per pallet | 198 | 98 | 63 | 48 |
*VB = with vehicle mounting bracket in place of wall hook.
