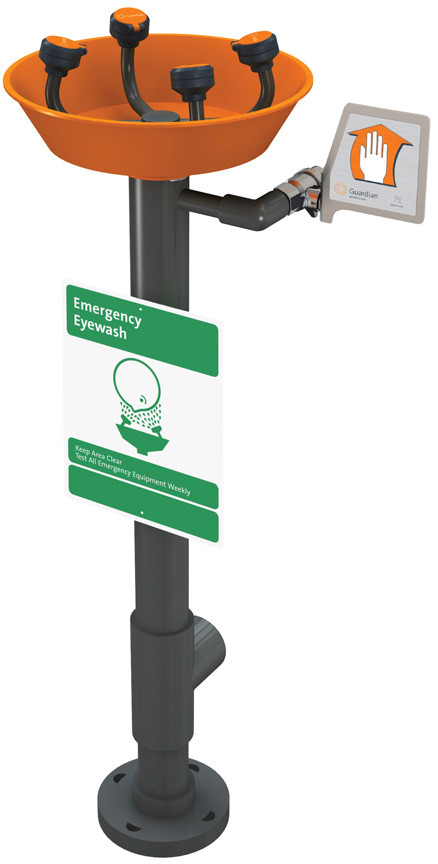

A photograph of an orange Guardian G1796 WideArea™ Eye/Face Wash.

Guardian G1796 WideArea™ Eye/Face Wash, Pedestal Mounted, All-PVC Construction

Item #: G1796

* Color:

Orange
Green
Yellow

HS - Auxiliary drench hose:

HS - Auxiliary drench hose

Quantity:

$1,263.00

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G1796 is constructed entirely of PVC and PVC-coated brass for superior corrosion resistance. The G1786 is identical to the G1796 except it uses two larger FS-Plus™ spray heads to wash the eyes and face. The G1896 is similar but uses two GS-Plus™ spray heads which wash the eyes only. Guardian also makes a number of other corrosion-resistant eye/face washes in PVC and stainless steel.

SHIPMENT NOTE: This product is relatively fragile and Guardian prefers to ship this rather compact/lightweight item as freight to prevent damage in transit. Our free shipping offer does not cover these freight charges and these are not included in the price. Please feel free to contact us before ordering to get a freight estimate. Alternatively, we can ship this item on your designated freight account or you can pick up this product in Chicago, IL.

Features

Options

Application: Free standing, pedestal mounted WideArea™ eye/face wash. Constructed entirely in PVC and PVC-coated brass. Ideal for use in industrial environments where harsh acids or caustics are present. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS PVC-coated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.

Bowl: 11-3/4" diameter orange ABS plastic.

Pipe and Fittings: Schedule 80 PVC.

Supply: 1/2" NPT female inlet.

Waste: 2" socket weld female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

GRN Green ABS plastic bowl.

HS Auxiliary hand-held drench hose for rinsing eyes, face or body.

Y Yellow ABS plastic bowl.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.

Documentation available: G1796 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item ships in a box approximately 16" x 23" x 13" (41 x 58 x 33 cm) weighing approximately 12 pounds (5.5 kg); however it generally ships as freight - see the note in the second paragraph (above).
