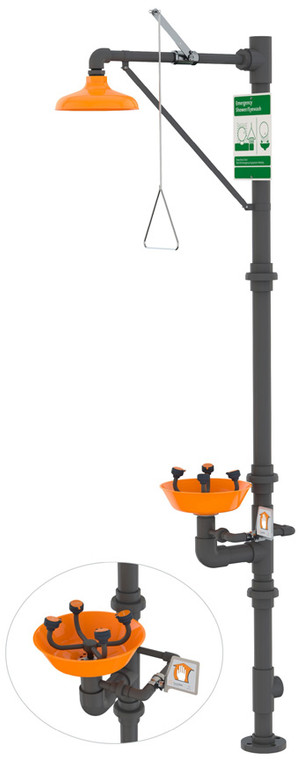

- Guardian G1998 Series Safety Stations with WideArea™ Eye/Face Wash, All-PVC Construction
CYBER SAVINGS: NIOSH-Approved N99 Masks for less than 60 cents! Get them now!
The Guardian Equipment G1998 features all-PVC construction for long-lasting protection from harsh acids or caustics. The G1992 is identical except it has two GS-Plus™ spray heads designed only to cover the eyes. The G1993 is also identical except that it has two FS-Plus™ spray heads which serve to wash the eyes and face.
If you'd like your corrosion resistance in stainless steel, consider the G1991, G1994, or G1996 models.
SHIPMENT NOTE: This product is relatively fragile and Guardian prefers to ship this item as freight to prevent damage in transit. Our free shipping offer does not cover accessorial freight charges such as residential delivery so please contact us before ordering to see if freight charges may apply to this purchase. Alternatively, we can ship this item on your designated freight account or you can pick up this product in Chicago, IL.
Application: All-PVC combination WideArea™ eye/face wash and shower safety station. Unit is constructed entirely of PVC and PVC-coated components for superior corrosion resistance. Ideal for industrial environments where harsh acids or caustics are present. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.
Shower Valve: 1" IPS PVC-coated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from water.
Eyewash Bowl: 11-3/4" orange ABS plastic.
Eyewash Valve: 1/2” IPS PVC-coated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.
Pipe & Fittings: Schedule 80 PVC.
Supply: 2" IPS socket weld top female inlet.
Waste: 2" IPS socket weld female outlet.
Sign: Furnished with ANSI-compliant identification sign, item # 250-008G.
Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
AP275-100 Electric Light and Alarm Horn Light and alarm horn summon assistance when eye/face wash or shower is activated.
GRN Green ABS plastic shower head and bowl.
SSH Stainless steel shower head.
YEL Yellow ABS plastic shower head and bowl.
An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.
Documentation available: G1998 specification sheet w/ measured drawings, installation, operation and maintenance guide, and written specifications (Word format).
Common replacement parts: 470-004R replacement GS-Plus™ foam filters (6/pkg), 470-005R replacement GS-Plus™ flow controls (6/pkg), and AP470-001 replacement GS-Plus™ spray head.
All Guardian items are manufactured in the USA. This item ships in a box approximately 33" x 17" x 9" (84 x 43 x 23 cm) weighing approximately 30 pounds (13.6 kg); however it will ship as freight rather than parcel - see the note in the third paragraph (above).
2-year limited manufacturer warranty.
