Guardian G1805 Eyewash, Deck Mounted, AutoFlow™ 90º Swivel, Right Hand Mounting

Item #: G1805
Quantity:
$261.00

Availability: 1-2 business days

Product Description

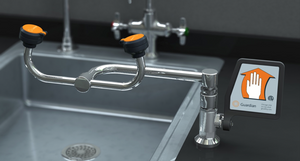

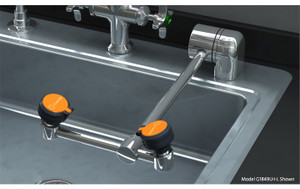

The Guardian Equipment G1805 eyewash mounts on the countertop to the side of your existing sink and swivels out of the way when not needed. Available in right and left-handed configurations; sink is not included.  Similar models are the G1848 which mounts to the wall behind the sink, and the G1849 which mounts on the deck behind the sink.

Features Options

Application: AutoFlow™ eyewash for mounting next to sink. Swinging the spray head assembly horizontally out over the sink activates the water flow. The unit remains in operation until the spray head assembly is swung back into the storage position, closing the valve.

Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2” IPS plug-type valve with Teflon® coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.

Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.

Mounting: Unit is mounted on right side of sink. Furnished with mounting shank, positioning lugs, locknut and washer for securing unit to counter.

Construction: Polished chrome plated brass.

Supply: 1/2" NPT female inlet.

Waste: Polished chrome plated brass.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

DC Stainless steel dust cover for each spray head.

LH Left hand mounting.

Application Note

An optional G3600LF thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1805 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts: 470-004R filters (inspect regularly and change as needed) and AP470-001 replacement GS-Plus spray head..

All Guardian items are manufactured in the USA. Weight: 5 lb (2.3 kg).

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
