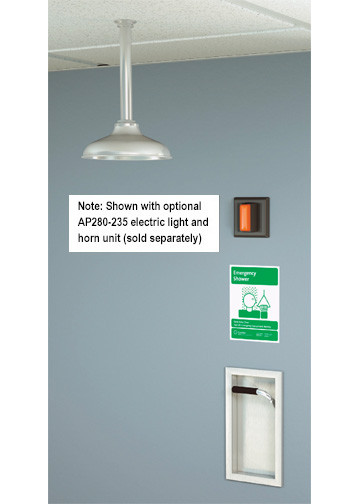

  • A photograph of a Guardian GBF1670 Recessed Emergency Shower installed on a wall and ceiling, along with an AP280-235 electric light and horn unit (sold separately).
  • A photograph of the activation panel of a Guardian GBF1670 Recessed Emergency Shower.
  • An example of the rolled stainless steel edge of the activation panel on a similar safety station.

Guardian GBF1670 Recessed Emergency Shower, Exposed Shower Head

Item #: GBF1670
Quantity:
$836.00

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment GBF1670 recessed emergency shower has an exposed shower head and is activated by pulling a recessed pull lever that stays open until manually shut. When mounted at the correct height, this unit is compliant with the Americans With Disabilities Act (ADA) in meeting the needs of wheelchair users. The GBF1671 is similar but features a recessed shower head that can be installed in 8-10' ceilings. The GBF1672 is also similar but features a horizontal wall-mounted shower head.

Features Options

Application: Recessed emergency shower with ceiling mounted exposed shower head. Recessed shower conserves valuable floor space, while eliminating the clutter and obstruction created by conventional shower equipment. Unit can be installed in either a corridor or a lab room, close to where accidents might occur.

ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons. shower head: 10" diameter stainless steel. Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height below finished ceiling.

Shower Head: 10” diameter stainless steel with 20 GPM flow control. Furnished with vertical supply pipe and ceiling escutcheon for mounting shower head at desired height below finished ceiling.

Valve: 1" IPS brass stay-open ball valve with stainless steel “panic bar.” Pulling bar down activates shower; shower remains in operation until bar is returned to original closed position. Furnished with stainless steel access panel and 1" IPS unions for valve.

Mounting: 16 gauge stainless steel cabinet with flange featuring 3/8” return for recessed mounting in wall.

Pipe & Fittings: Exposed pipe and escutcheon are brushed stainless steel.

Supply: 1" NPT female inlet.

Sign: ANSI-compliant identification sign, item # 250-009G.

AP280-235 Electric light and alarm horn. Flashing light/alarm horn unit is recess mounted in finished wall. Light is illuminated and horn sounds when shower is activated. Includes additional leads for remote monitoring.

APBF250-065 Modesty curtain.

Application Note

An optional G6040 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  GBF1670 specification sheet w/ measured drawings, installation, operation and maintenance guide, and written specifications (Word format).

Common replacement parts: None are required under normal conditions of use.

All Guardian items are manufactured in the USA. Shipping weight: approximately 14 lb (6.35 kg). The freight class is 85.

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
