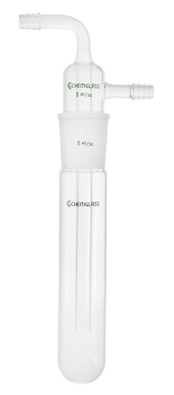

This vacuum trap with serrated hose connections has 2 piece construction for easy removal of condensate. Inlet and outlet are 180° apart for installation into a variety of vacuum systems. The stopper has a standard taper inner joint and body has an outer joint. Body length is measured below the joint. Serrated hose connections have an O.D. of 13 mm at the smallest serration and 16 mm at the largest serration.
*Note: replacement lower trap bodies for all sizes are identical to those used in the CG-4514 except for the 71/60 which is not available for the CG-5414. To order, simply select the size you need from that product page.
|Item #||Joint size||Bottle OD x Length (mm)||Inner and Side Tube OD (mm)|
|CG-4515-01||29/42||32 x 200||10|
|CG-4515-02||34/45||38 x 225||13|
|CG-4515-03||40/50||45 x 250||16|
|CG-4515-04||50/50||54 x 275||25|
|CG-4515-20||55/50||60 x 300||30
|CG-4515-21||71/60||75 x 300||30|
