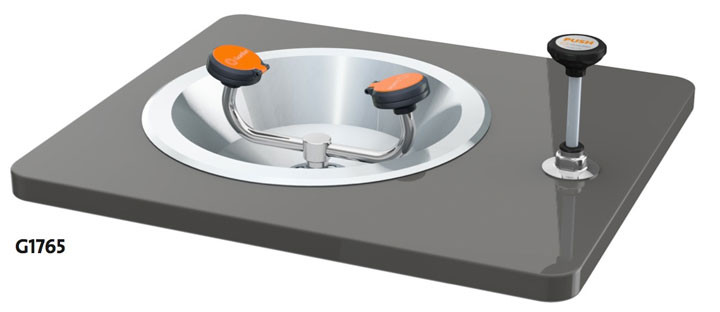

  • A photograph of a Guardian G1765 Eye/Face Wash, Recess Deck Mounted, Push-Down Valve mounted on a countertop (countertop not included).

Guardian G1765 Eye/Face Wash, Recess Deck Mounted, Push-Down Valve

Item #: G1765
Quantity:
$624.00

Normal Availability: 3-5 business days

Product Description

The Guardian Equipment G1765 includes a bowl which is mounted directly into your existing countertop and is activated with a push-down valve handle. The G1727 is similar except tit features four GS-Plus™ spray heads to wash the eyes and face as is the G1810 which has two GS-Plus™ spray heads which wash the eyes only. The G1766 is similar except the activating mechanism is a flag handle. The G1755 is also similar except the bowl sits above the bench surface (like a vessel sink) and has a flag handle.

Features Options

Application: Eye/face wash for recessed mounting in countertop. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: 1/2" IPS brass stay-open ball valve. Valve is mounted below counter and activated by push-down knob.

Bowl: 13" diameter flanged stainless steel bowl for recessed mounting in countertop. Furnished with all hardware necessary for installation in counter.

Supply: 1/2" NPT male inlet.

Waste: 1-1/4" NPT female outlet.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

T Chrome plated brass tailpiece and trap with 1 1/2" IPS waste connection.

TP 1 1/2" OD chrome plated brass tailpiece.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  G1765 specification sheet w/ measured drawings, parts list, and written specifications (Word format).

Common replacement parts470-024R replacement FS-Plus™ foam filters (6/pkg), 470-025R replacement FS-Plus™ flow controls (6/pkg), and AP470-021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. This item weighs approximately 10 pounds (4.5 kg).



Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
