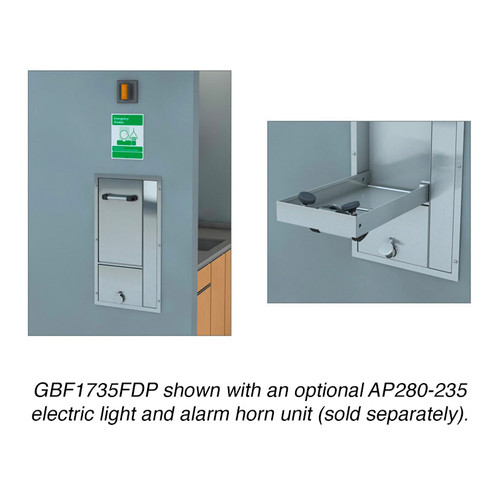

  • A photograph of a GBF1735FDP mounted into a wall and shown in the closed position (left) and open position (right).  An optional AP280 electric light and alarm horn unit (not included) is also shown.
  • A photograph of a GBF1735DP mounted into a wall and shown in the closed position (left) and open position (right).
  • A closeup photograph of a GBF1735FDP in the open position.
  • A photograph of a GBF1735DP in the closed position. An optional AP280 electric light and alarm horn unit (not included) is also shown.
  • A photograph of a GBF1735DP in the open position.
  • A photograph of a GBF1735DP in the closed position.

Guardian GBF1735DP and GBF1735FDP Swing-Down Eye/Face Washes with Drain Pan, Recess Mounted

Item #: GBF1735DP
Quantity:
$1,545.00

Normal Availability: 4-10 business days

Product Description

The Guardian Equipment GBF1735DP is a wall recess-mounted emergency eye and face wash which is activated by pulling it forward from the wall. The cover serves as a drain pain that can be plumbed to the existing plumbing system; the GBF1735FDP is similar but the drains the waste water out the front of the unit to reduce the installation cost where adding a drain is not feasible.  If you are unable to mount this unit within a wall because of practical issues, the GBF1736DP is a surface-mount version of this product and is available by special order.

This unit not only provides a crisp, clean, space-saving design, when installed at the correct height it complies with the Americans With Disabilities Act (ADA) in meeting the needs of wheelchair users.  Other ADA-compliant eye/face washes include the pedestal-mounted GBF1704, and wall-mounted GBF1724. We strongly encourage users to consider universal design principles when selecting safety equipment even if there is no current need.

Features Options

Application: Wall mounted barrier-free swing-down eye/face wash with drain pan. Stainless steel cover provides attractive appearance and protects unit when not in use. When activated, cover serves as pan to collect waste water and return it into unit for drainage. GBF1735DP is furnished with stainless steel cabinet that is recess mounted in a finished wall. GBF1736DP is furnished with stainless steel cabinet that is surface mounted on a wall. If you require eyewash protection, consider a two-head eyewash/drench hose combination unit instead.

ADA Compliance: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons.

Spray Head Assembly: Two FS-Plus™ spray heads mounted on supply arms. Each spray head has individually adjustable flow control and filter to remove impurities from water.

Cover/Drain Pan: 16 gauge stainless steel combination cover and drain pan. Grasping “panic bar” handle and opening cover pulls spray head assembly down from vertical to horizontal position, activating water flow. While unit is in operation, waste water is collected in drain pan and returned into cabinet for drainage. Unit remains in operation until cover is returned to closed position.

Valve: 1/2" IPS brass plug-type valve with O-ring seals. Furnished with in-line strainer to protect valve and spray heads from debris and foreign matter.

Supply: 1/2" NPT female inlet.

Waste: 2" NPT female outlet.

Mounting: 16 gauge stainless steel cabinet. GBF1735DP cabinet has flanged rim for recessed mounting in wall. Unit fits in standard 3 5/8" deep wall. GBF1736DP cabinet is designed for mounting on wall surface.

Sign: ANSI-compliant identification sign, item # 250-007G.

Quality Assurance: Unit is completely assembled and water tested prior to shipment

AP280-235 Electric light and alarm horn. Flashing light/alarm horn unit is recess mounted in finished wall. Light is illuminated and horn sounds when shower is activated. Includes additional leads for remote monitoring.

NOTE: The GBF1736DP is a similar unit, only surface-mounted and slightly more expensive. It is available by special order only.

Application Note

An optional G6020 thermostatic mixing valve (tempering unit) which precisely blends hot and cold water to deliver warm (tepid) water as provided by ANSI Z358.1-2014 may be required under your state or local plumbing codes.



Documentation available:  GBF1735DP and GBF1735FDP specification sheets w/ measured drawings, installation, operation and maintenance guide, and GBF1735DP and GBF1735FDP written specifications (Word format).

Common replacement parts470-0024R replacement FS-Plus™ foam filters (6/pkg), 470-0025R replacement FS-Plus™ flow controls (6/pkg), and AP470-0021 replacement FS-Plus™ spray head.

All Guardian items are manufactured in the USA. These items ship as palletized freight to avoid damage during shipment. The estimated shipping weight of this item is 60 lb (27.2 kg), the estimated dimensions are 38" x 19" x 6" (97 x 48 x 15 cm) plus the pallet height, and the freight class is 85.

Warranty Information

2-year limited manufacturer warranty.

Other Details

Manufactured in: USA
